Safety and Interlocks
Laser beam used are invisible 3R Class, it can damage your eyes irreversibly with a direct exposure.
Always wear safety goggles when you go inside the laser room

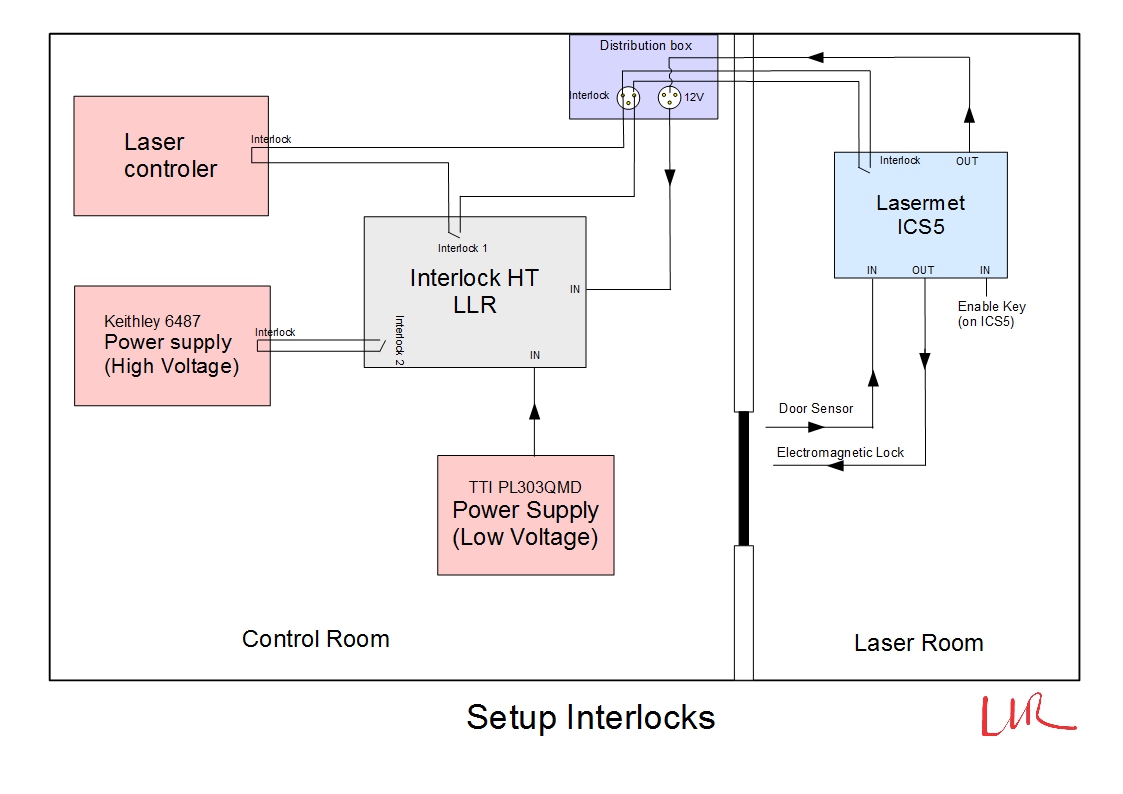

Global interlock Setup
[raw-attachment:Utilisation_interlock.pdf Interlock Use (French)]
Lasermet ICS-5 interlock
This interlock is used to lock the door between the control room and the laser room.
You need to activate this interlock first inside the room, before using the laser.
[raw-attachment:Lasermet_ICS5_Manual.pdf Lasermet ICS-5 Manual]
[raw-attachment:Lasermet_WarningSign.pdf]
[raw-attachment:Lasermet_KP12.pdf]
Interlock HT (custom)
This interlock is a custom interlock to protect the user from the High-Voltage power supply and the laser radiations from the laser controler.
You can’t activate High voltage and Laser while you are inside the laser room.
The interlock can be remotly controlled on the computer and have a database to save the events that occur.
It is also connected to a signal tower installed outside the room in the main corridor.
[raw-attachment:Manuel_utilisateur_interlockHT.pdf Interlock HT user manual (French)]
Connecteur interlock, embase male 4 pt (6487) : CS-458
http://www.keithley.fr/products/accessories/connadaptools/?mn=CS-458
Câble interlock femelle : 6517-ILC-3
